Yetuo NAno-30 high-pressure homogenizer

Product parameters:

Model: NAno-30

Design flow rate (L/H): 25~30

Design maximum working pressure (mpa/bar/psi): 150/1500/21750

Usage pressure (mpa/bar/psi): 120/1200/17400

Operation mode: button press

Voltage (V): 220

Number of plungers (piece): 1

Power (kw): 2.2

Main functions: Homogenization, wall breaking, refinement (optional with chiller temperature control)

Minimum processing capacity: 45ml

Product process viscosity: ≤ 2000cp

Maximum feed particle size: ≤ 100 μ m

Work pressure display: pressure gauge

Control mode: manual operation

Maximum product feed temperature: 90 ° C

Weight: 150KG


Product Quotation:Inquiry now

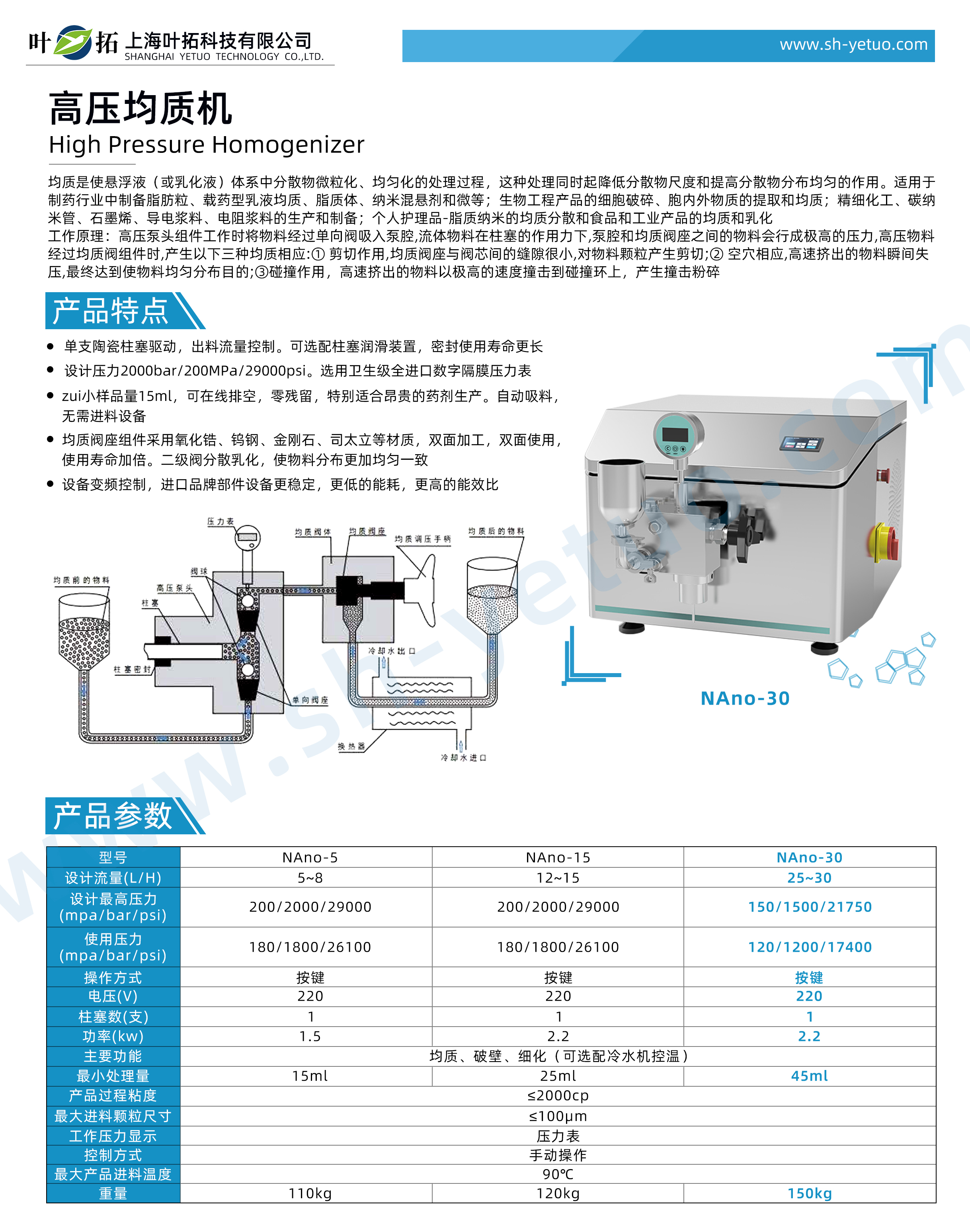

Yetuo NAno-30 high-pressure homogenizer


Model: NAno-30



Product Overview:



Homogenization is the process of micronizing and homogenizing dispersed substances in a suspension (or emulsion) system, which simultaneously reduces the size of dispersed substances and improves their distribution uniformity. It is suitable for the preparation of fat particles, drug loaded lotion homogenization, liposomes, nano mixed agents and micro particles in the dry pharmaceutical industry; Cell fragmentation, extraction and homogenization of intracellular and extracellular substances in biotechnology products; Production and preparation of fine chemicals, carbon nanotubes, graphene, conductive slurries, and resistance slurries; Personal care products - Homogeneous dispersion of lipid nanoparticles and homogenization and emulsification of food and industrial products,


Working principle: When the high-pressure pump head component works, the material is sucked into the pump chamber through a one-way valve. Under the force of the plunger, the fluid material between the pump chamber and the homogeneous valve seat will generate a high pressure. When the high-pressure material passes through the homogeneous valve component, the following three homogenization reactions occur: ① shear action, the gap between the homogeneous valve seat and the valve core is very small, causing shear on the material particles; ② Correspondingly, the material extruded at high speed loses pressure instantly, ultimately achieving the goal of uniform distribution of the material; ③ The collision effect causes the material extruded at high speed to collide with the collision ring, resulting in impact crushing.

Product characteristics of Yetuo NAno-30 high-pressure homogenizer


Single ceramic plunger drive, discharge flow control. Optional plunger lubrication device for longer sealing service life.


Design pressure 2000bar/200MPa/29000psi. Select sanitary grade fully imported digital diaphragm pressure gauge.


Zui has a small sample size of 15ml, which can be emptied online with zero residue, making it particularly suitable for expensive pharmaceutical production. Automatic suction without the need for feeding equipment.


The homogeneous valve seat components are made of materials such as zirconia, tungsten steel, diamond, and Stellite, processed on both sides and used on both sides, doubling the service life. The secondary valve disperses emulsification, making the material distribution more uniform and consistent.


Equipment frequency conversion control, imported brand components for more stable equipment, lower energy consumption, and higher energy efficiency ratio.
