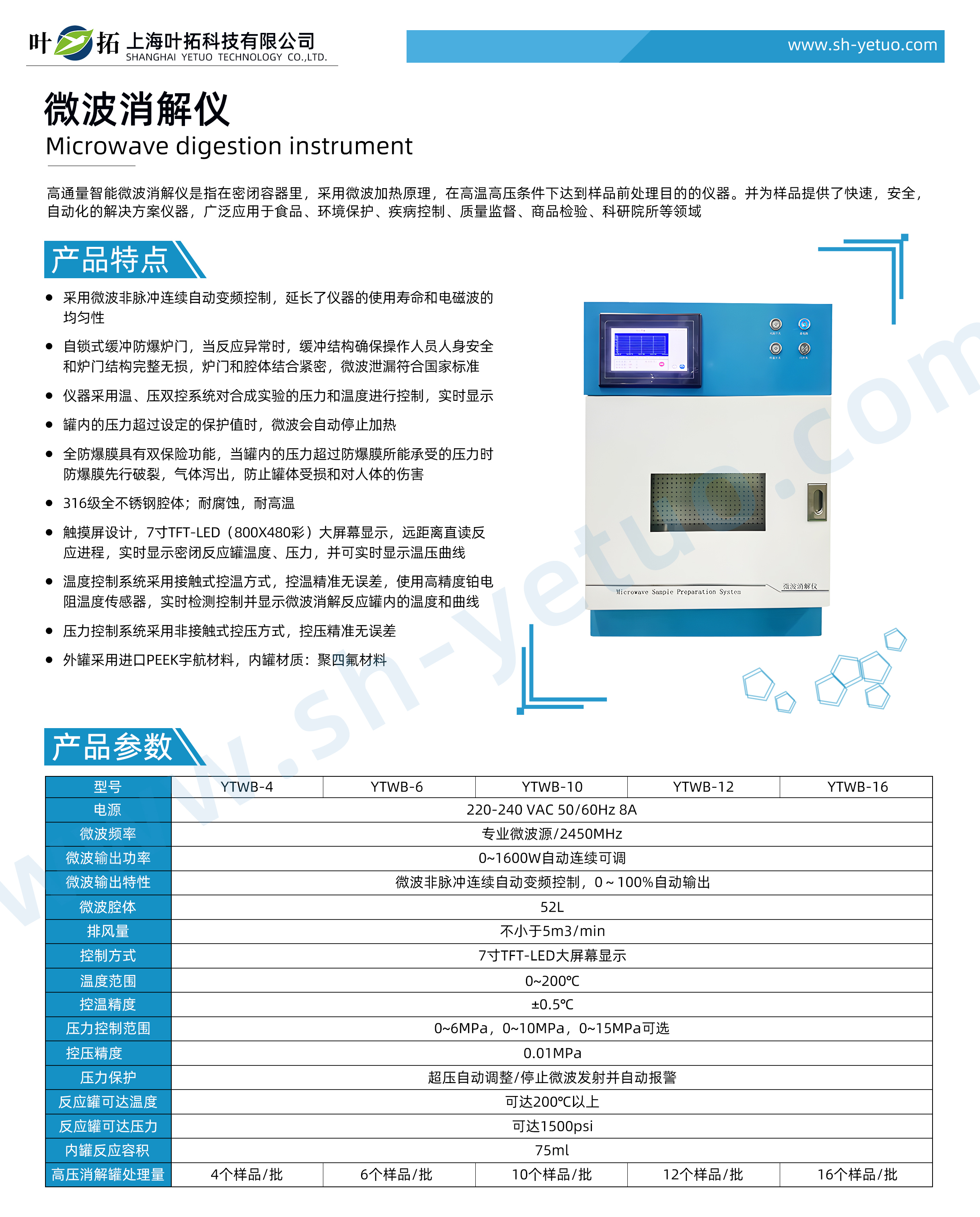

Ye Tuo YTWB-16 microwave digestion instrument

Product parameters:

Model: YTWB-16

Power supply: 220-240 VAC 50/60Hz 8A

Microwave frequency: professional microwave source/2450MHz

Microwave output power: 0-1600W, automatically continuously adjustable

Microwave output characteristics: Microwave non pulse continuous automatic frequency conversion control, 0~100% automatic output

Microwave cavity: 52L

Exhaust volume: not less than 5m3/min

Control method: 7-inch TFT-LED large screen display

Temperature range: 0-200 ° C

Temperature control accuracy: ± 0.5 ° C

Pressure control range: 0-6MPa, 0-10MPa, 0-15MPa optional

Pressure control accuracy: 0.01MPa

Pressure protection: Automatic adjustment/stop of microwave emission and automatic alarm for overpressure

The reaction tank can reach a temperature of over 200 ℃

The reaction tank can reach a pressure of up to 1500psi

Inner tank reaction volume: 75ml

High pressure digestion tank processing capacity: 16 samples/batch



Product Quotation:Inquiry now

Ye Tuo YTWB-16 microwave digestion instrument


Model: YTWB-16


Product Overview:


High throughput intelligent microwave digestion instrument refers to an instrument that uses the principle of microwave heating in a closed container to achieve sample pretreatment under high temperature and pressure conditions. And it provides fast, safe and automated solution instruments for samples, widely used in fields such as food, environmental protection, disease control, quality supervision, commodity inspection, and scientific research institutions.


Product characteristics of Ye Tuo YTWB-16 microwave digestion instrument


The use of microwave non pulse continuous automatic frequency conversion control extends the service life of the instrument and the uniformity of electromagnetic waves


● Self locking buffer explosion-proof furnace door. In case of abnormal reaction, the buffer structure ensures the personal safety of operators and the integrity of the furnace door structure. The furnace door and chamber are tightly combined, and microwave leakage meets national standards


The instrument adopts a temperature and pressure dual control system to control the pressure and temperature of the synthesis experiment, with real-time display


When the pressure inside the tank exceeds the set protection value, the microwave will automatically stop heating


The full explosion-proof membrane has a dual safety function. When the pressure inside the tank exceeds the pressure that the explosion-proof membrane can withstand, the explosion-proof membrane will first rupture, causing gas to escape, preventing damage to the tank and harm to human health


316 grade all stainless steel chamber; Corrosion resistance and high temperature resistance


● Touch screen design, 7-inch TFT-LED (800X480 color) large screen display, long-distance direct reading of reaction process, real-time display of closed reaction tank temperature and pressure, and real-time display of temperature and pressure curve


The temperature control system adopts a contact type temperature control method, which is precise and error free. It uses high-precision platinum resistance temperature sensors to detect, control, and display the temperature and curve inside the microwave digestion reaction tank in real time


The pressure control system adopts a non-contact pressure control method, with precise and error free pressure control


The outer tank is made of imported PEEK aerospace material, while the inner tank is made of PTFE material
